Overview - Rear Lid Tail Lamps

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

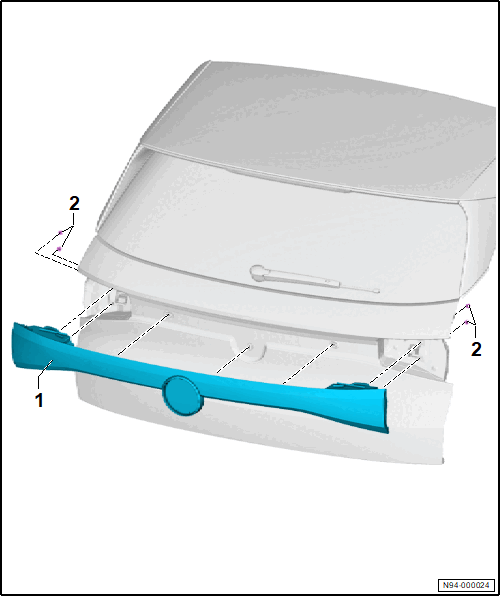

Fig 1: Exploded View Of Rear Lid Tail Lamps
GWWN94-000024Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Center Tail Lamp -MX13-
  2. Nut
    • 4 Nm
    • Quantity: 4
