Overview - Body Tail Lamps

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

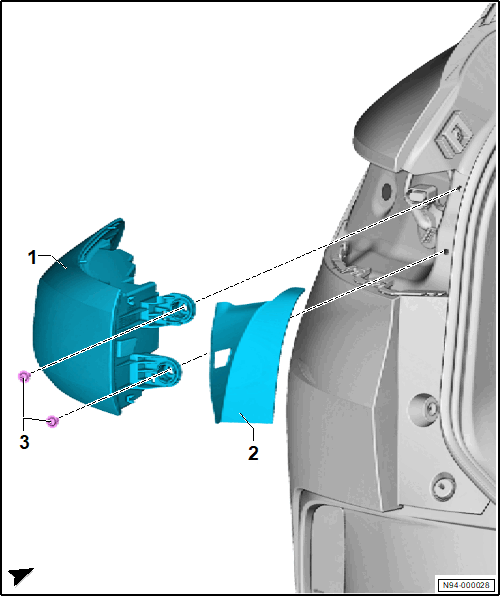

Fig 1: Exploded View Of Body Tail Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Tail Lamp -MX3- /Right Tail Lamp -MX4-
- Refer to Left/Right Tail Lamp MX3/MX4, Removing and Installing .
Tail Lamp Cover
- Refer to Left/Right Tail Lamp MX3/MX4, Removing and Installing .
Bolt
- 3.5 Nm
- Quantity: 2
