Left/Right Tail Lamp MX3/MX4, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

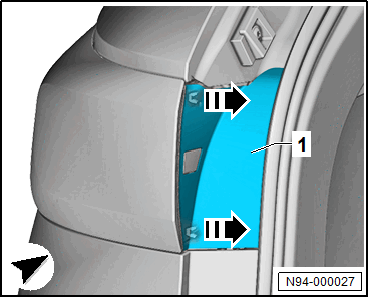

-- Release the tail lamp cover -1- in the direction of -arrow- from below upward using a commercially available plastic wedge.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tail lamp cover -1- rearward.

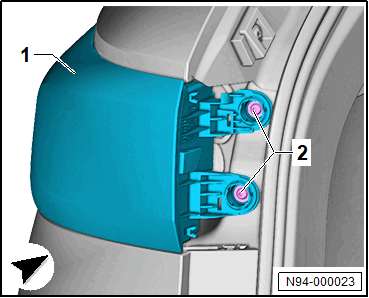

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tail lamp -1- until the connector is accessible.

-- Disconnect the connector.

-- Remove the tail lamp assembly -1-.
