Center Tail Lamp -MX13-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

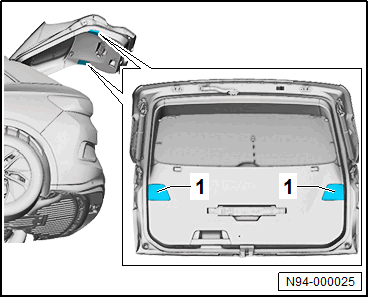

-- Pry off the caps -1- using a commercially available plastic wedge.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

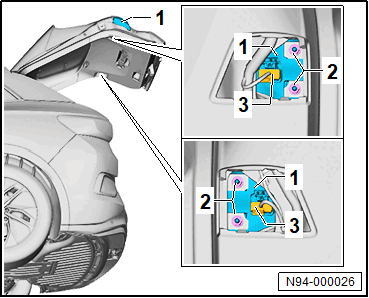

-- Disconnect the connectors -3-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the nuts -2-.
-- Remove the center tail lamp -1-.
