Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Position the steering wheel as far back and down as possible. Use the entire adjustment range of the steering column adjustment for this.

-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the Driver Information System Control Module with Display Unit -J1254-. Refer to DRIVER INFORMATION SYSTEM CONTROL MODULE WITH DISPLAY UNIT -J1254-, REMOVING AND INSTALLING .

CAUTION:

Risk of destroying electronic components with static discharge.

- Discharge static electricity: briefly touch the door striker.

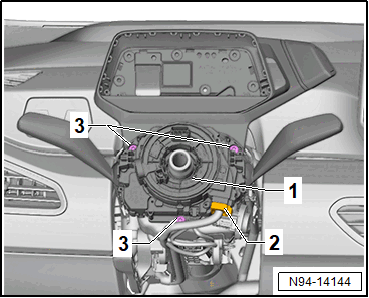

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -3-.

CAUTION:

Risk of damaging the return ring.

- The return spring with slip ring must not be turned when they have been removed.

-- Remove the steering column electronics control module -1-.
