Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

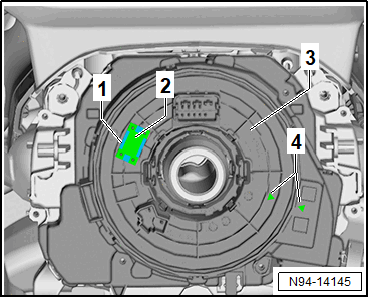

-- Before sliding on the steering column electronics control module -3-, check the following:
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
- The "arrows" -4- must align.
- The spiral spring -2- must be able to be seen in the window -1-.
