Left And Right License Plate Lamp X4/X5, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

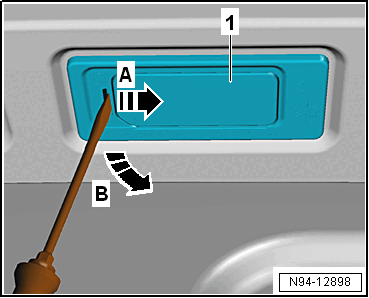

-- Using suitable screwdriver, release the license plate lamp -1- in the direction of -arrow A-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the license plate lamp -1- in direction of -arrow B-, so that the connector is accessible.

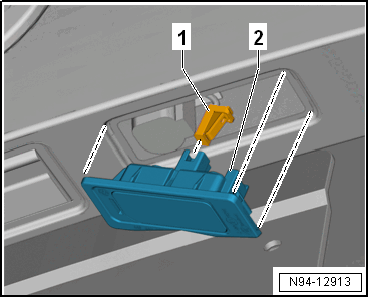

-- Disconnect the connector -1-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the license plate lamp -2-.
