Right And Left Led Headlamp Power Output Module 1 A27/A31, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

If the power output module is replaced, the test plan for replacing the power output module must be performed.

-- Perform the "power output module, replacing" function using the Vehicle Diagnostic Tester. Refer to the appropriate Service Information .

Continuation

-- Remove the headlamp. Refer to Headlamp, Removing and Installing .

CAUTION:

Risk of damaging electrical components.

The electrostatic charge can damage electrical components.

- Procedures at the electrical components must only be performed at an electro-static discharge work surface.

-- Place the headlamp on the Electro-Static Discharge Work Surface: VAS6613 .

Fig 1: ESD Work Surface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

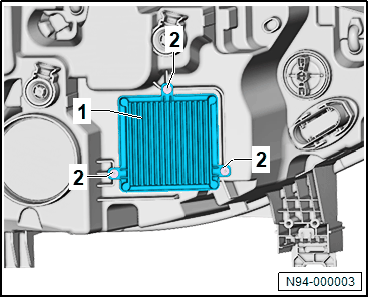

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the power output module -1- from the headlamp, until the connector is accessible.

-- Disconnect the connector.

-- Remove the power output module -1-.
