Overview - Headlamps

The overview shows the left side of the vehicle as an example

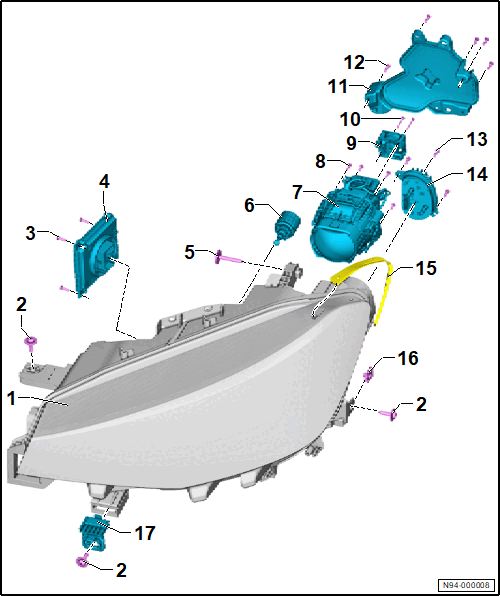

Fig 1: Exploded View Of Headlamps (Performance)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Front Headlamp -MX1- /Right Front Headlamp -MX2-
   • Refer to Headlamp, Removing and Installing  .
   • Refer to Headlamp, Adjusting  .
2. Bolt
   • 4.5 Nm
   • Quantity: 3
3. Bolt
   • 1.5 Nm
   • Quantity: 3
4. Left LED Headlamp Power Output Module 1 -A31- /Right LED Headlamp Power Output Module 1 -A27-
   • Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 A27/A31, REMOVING AND INSTALLING, PERFORMANCE HEADLAMPS  .
5. Bolt
   • 4.5 Nm
6. Left Headlamp Range Control Adjustment Motor -V48- / Right Headlamp Range Control Adjustment Motor -V49-
   • Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR V48/V49, REMOVING AND INSTALLING, PERFORMANCE HEADLAMPS  .
7. Left Variable Headlamp Bulb -L207- / Right Variable Headlamp Bulb -L208-
   • Refer to LEFT AND RIGHT VARIABLE HEADLAMP BULBS L207/L208, REMOVING AND INSTALLING
8. Bolt
   • 1.5 Nm
   • Quantity: 4
9. Left Headlamp Fan -V407- / Right Headlamp Fan -V408-
   • Refer to LEFT AND RIGHT HEADLAMP FAN V407/V408, REMOVING AND INSTALLING
10. Bolt
    • 1.5 Nm
    • Quantity: 2
11. Housing Cover
    • Use if a repair is required
12. Bolt
    • 1.5 Nm
    • Use if a repair is required
    • Quantity: 5
13. Bolt
    • 1.5 Nm
    • Quantity: 3
14. Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-
    • With Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-
    • Refer to LEFT AND RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP LED MODULE L176/L177, REMOVING AND INSTALLING
15. Seal
16. Spring Nut
    • M 6
17. Headlamp Mount
