Overview - Headlamps

The overview shows the left side of the vehicle as an example

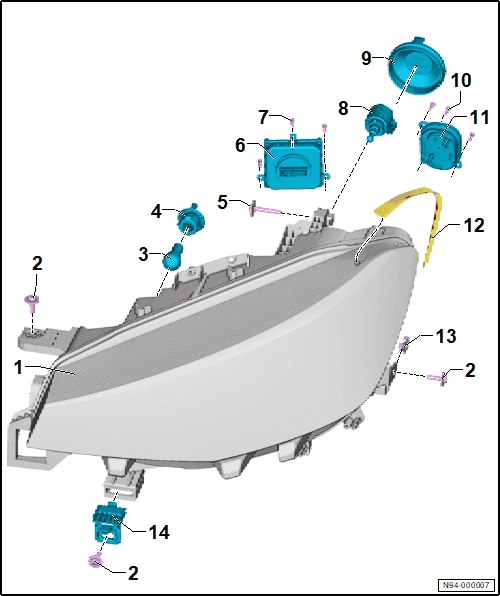

Fig 1: Exploded View Of Headlamps (ECO)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Front Headlamp -MX1- /Right Front Headlamp -MX2-
   • Refer to Headlamp, Removing and Installing  .
   • Refer to Headlamp, Adjusting  .
2. Bolt
   • 4.5 Nm
   • Quantity: 3
3. Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-
   • Refer to Left/Right Front Turn Signal Bulb M5/M7, Removing and Installing ECO  .
4. Socket for the Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-
5. Bolt
   • 4.5 Nm
6. Left LED Headlamp Power Output Module 1 -A31- /Right LED Headlamp Power Output Module 1 -A27-
   • Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 A27/A31, REMOVING AND INSTALLING, ECO HEADLAMPS  .
7. Bolt
   • 1.5 Nm
   • Quantity: 3
8. Left Headlamp Range Control Adjustment Motor -V48- / Right Headlamp Range Control Adjustment Motor -V49-
   • Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR V48/V49, REMOVING AND INSTALLING, HEADLAMPS ECO  .
9. Headlamp Beam Adjustment Motor Housing Cover
   • Use if a repair is required
10. Bolt
    • 1.5 Nm
    • Quantity: 3
11. Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-
    • Refer to LEFT AND RIGHT DAYTIME RUNNING LAMP AND POSITION LAMP LED MODULE L176/L177, REMOVING AND INSTALLING
12. Seal
13. Spring Nut
    • M 6
14. Headlamp Mount
