Overview - Headlamp Housing Repair Kit
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

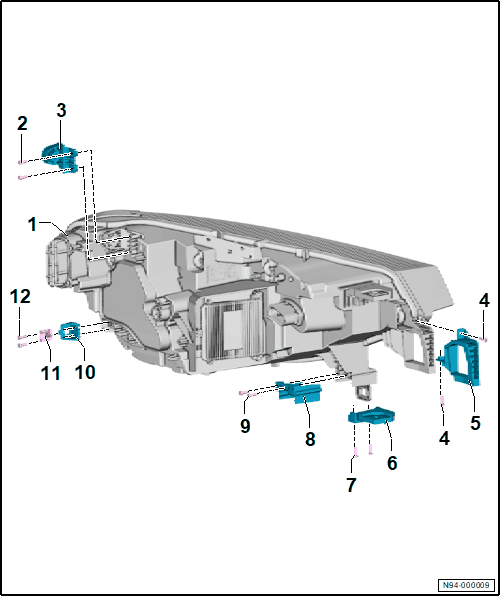

The overview shows the left side of the vehicle as an example
- Left Front Headlamp -MX1- /Right Front Headlamp -MX2-
- Refer to Headlamp, Removing and Installing .
- Refer to Headlamp, Adjusting .
- Bolt
- 1.5 Nm
- Quantity: 2
- Upper Mounting Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Bolt
- 1.5 Nm
- Quantity: 2
- Inner Mounting Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Rear Mounting Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Bolt
- 1.5 Nm
- Quantity: 2
- Front Mounting Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Bolt
- 1.5 Nm
- Quantity: 2
- Outer Mounting Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Spring Nut
- M 6
- Bolt
- 1.5 Nm
- Quantity: 2
