Overview - Daytime Running Lamp Led Module

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

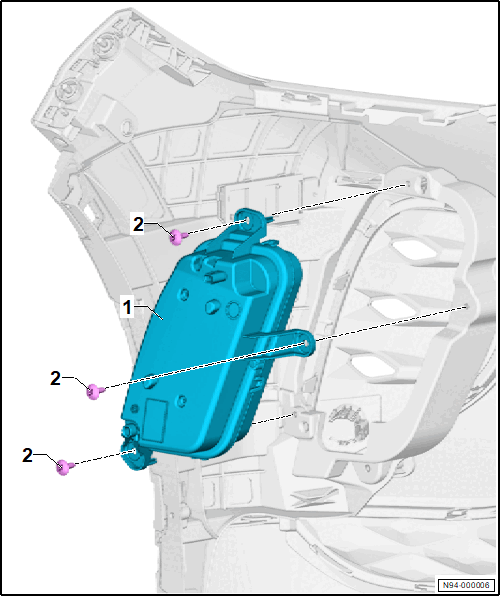

Fig 1: Exploded View Of Daytime Running Lamp Led Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Daytime Running Lamp LED Module -L377- /Right Daytime Running Lamp LED Module -L378-
- Refer to LEFT AND RIGHT DAYTIME RUNNING LAMP LED MODULE L377/L378, REMOVING AND INSTALLING
Bolt
- 2.5 Nm
- Quantity: 3
