Left And Right Variable Headlamp Bulbs L207/L208, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to Headlamp, Removing and Installing .

CAUTION:

Risk of damaging electrical components.

The electrostatic charge can damage electrical components.

- Procedures at the electrical components must only be performed at an electro-static discharge work surface.

-- Place the headlamp on the Electro-Static Discharge Work Surface: VAS6613 .

Fig 1: ESD Work Surface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

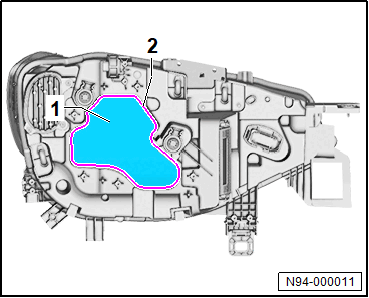

-- Carefully loosen the housing cover -1- along the break line -2- with a hammer.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the housing cover -1- from the headlamp.

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

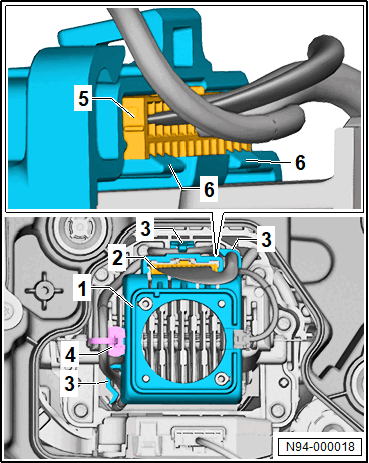

-- Remove the bracket for the wire -4-.

-- Release the hook -3-.

-- Remove the wires from the bracket -1-.

-- Release the locking tabs -6-.

-- Remove the connector -5-.

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

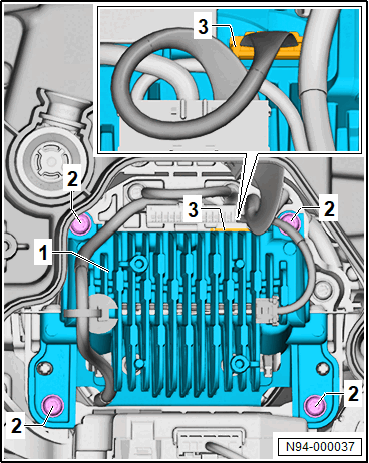

-- Guide the variable headlamp bulb -1- out of the headlamp housing, until the connector -3- is accessible.

-- Disconnect the connector -3-.

-- Remove the variable headlamp bulb -1-.
