Left And Right Variable Headlamp Bulbs L207/L208, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Risk of destroying the headlamp due to water leaks.

- During installation of the housing cover -1-, make sure the seal is seated correctly.

Tip

A new housing cover -1- must only be used for the initial repair.

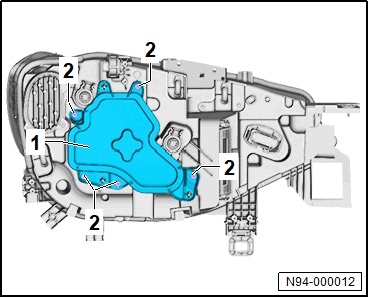

-- Mount the housing cover -1- on the headlamp.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -2-.

-- Check the headlamp adjustment and adjust the headlamp if necessary. Refer to HEADLAMP ADJUSTMENT: LED HEADLAMP WITH MATRIX-BEAM, CHECKING , HEADLAMP ADJUSTMENT, CHECKING, LED HEADLAMPS .
