Left/Right Front Turn Signal Bulb M5/M7, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of damaging the turn signal bulb.

- Do not touch the bulb glass from the turn signal bulb with bare fingers. For example, use clean soft gloves to remove and install the turn signal bulb.

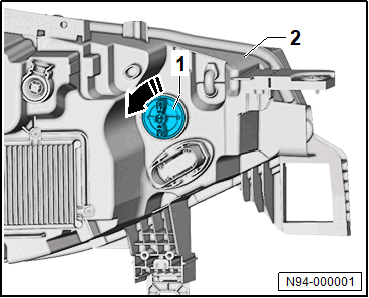

-- Release the socket with the turn signal bulb -1- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

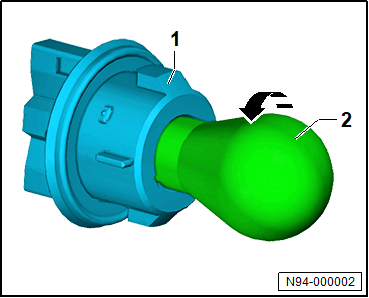

-- Press the turn signal bulb -2- into the socket -1- without force.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the turn signal bulb -2- in the direction of -arrow-.

-- Remove the turn signal bulb -2- from the socket -1-.
