Left And Right Daytime Running Lamp Led Module L377/L378, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

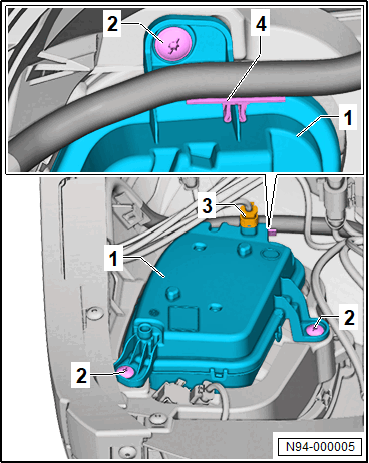

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket for the wire -4-.

-- Remove the bolts -2-.

-- Remove the daytime running lamp LED module -1-.
