Left And Right Daytime Running Lamp And Position Lamp Led Module L176/L177, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to Headlamp, Removing and Installing .

CAUTION:

Risk of damaging electrical components.

The electrostatic charge can damage electrical components.

- Procedures at the electrical components must only be performed at an electro-static discharge work surface.

-- Place the headlamp on the Electro-Static Discharge Work Surface: VAS6613 .

Fig 1: ESD Work Surface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

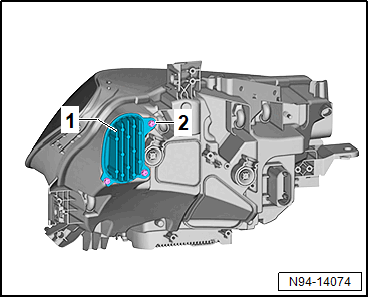

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide out the daytime running lamp LED module -1- from the headlamp housing, until the connector is accessible.

-- Disconnect the connector.

-- Remove the daytime running lamp LED module -1-.
