Headlamp Housing Repair Kit, Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

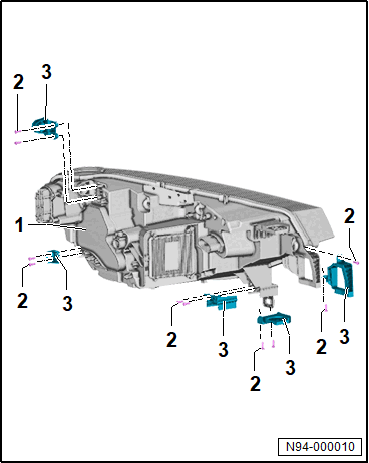

-- Install the repair kit mounting tab -3- on the headlamp -1-.
-- Tighten the bolts -2-.
Install in reverse order of removal. Note the following:
-- Install the headlamp and align to the body contour.
-- Check the headlamp adjustment and adjust the headlamp if necessary. Refer to HEADLAMP ADJUSTMENT: LED HEADLAMP WITH MATRIX-BEAM, CHECKING , HEADLAMP ADJUSTMENT, CHECKING, LED HEADLAMPS .
