Burglary Protection Control Module 4 -J1194- / Burglary Protection Control Module 5 -J1195-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

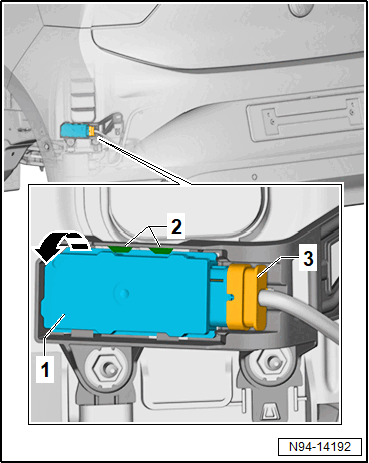

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the tabs -2-.

-- Remove the burglary protection control module -1- in the direction of -arrow-.
