Overview - Fuse Panel B

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

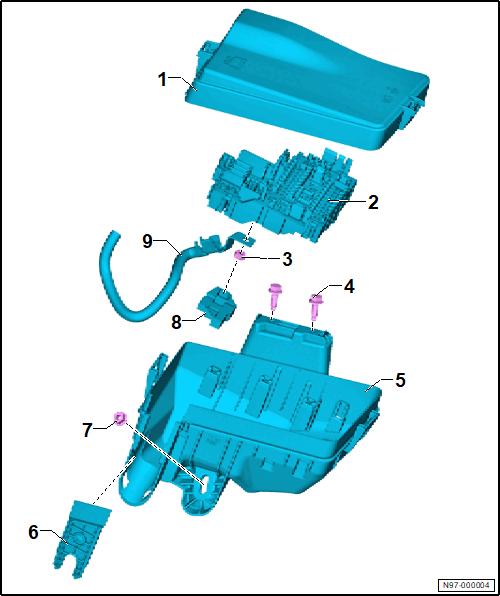

Fig 1: Exploded View Of Fuse Panel B
GWWN97-000004Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. E-Box Cover
  2. Fuse Panel B -SB-
  3. Nut
    • 9 Nm
  4. Bolt
    • 8 Nm
    • Quantity: 2
  5. E-Box
  6. E-Box Cover
  7. Nut
    • 8 Nm
  8. Protective Cap
  9. Wire
