Overview - Fuse Panel A

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

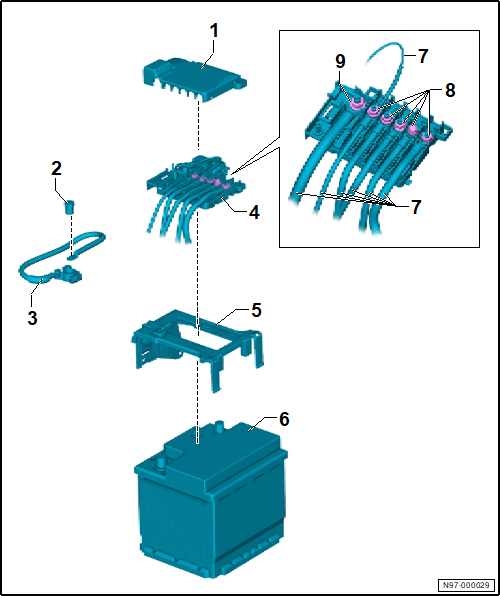

Fig 1: Exploded View Of Fuse Panel A
GWWN97-000029Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Cover
  2. Positive Jump Start, Nut
    • 20 Nm
  3. Positive Cable
  4. Fuse Panel A -SA-
  5. Bracket for the Fuse Panel A -SA-
  6. Battery -A-
  7. Wire
    • Use the wiring diagram for the connector assignment.
  8. Nut
    • 6 Nm
    • Quantity: 5
  9. Nut
    • 12 Nm
