Fuse Panel B Sb, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

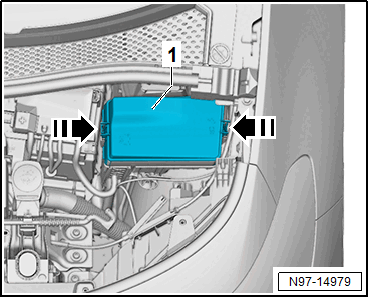

-- Release the retaining tabs -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the E-box cover -1-.

-- Remove the E-box cover -1- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

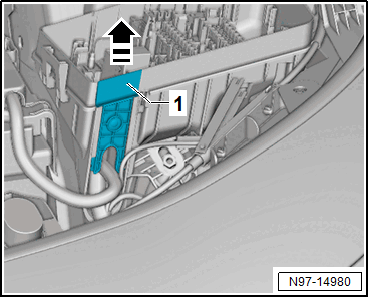

-- Release the catches -2- in the direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fuse panel B -1-, until the wires are accessible.

-- Remove the protective cap -2- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut from the wire -1-.

-- Remove the wire -1-.

CAUTION:

Risk of interchanging the connector assignment.

- Use the exact connector assignment of the wires from the applicable wiring diagram.

- Make pictures of the assignment of the wires and the fuses.

-- Remove the wires.

-- Remove the fuse panel B.
