E-Box, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Fuse Panel B -SB- and put aside with the wires still connected. Refer to FUSE PANEL B SB, REMOVING AND INSTALLING .

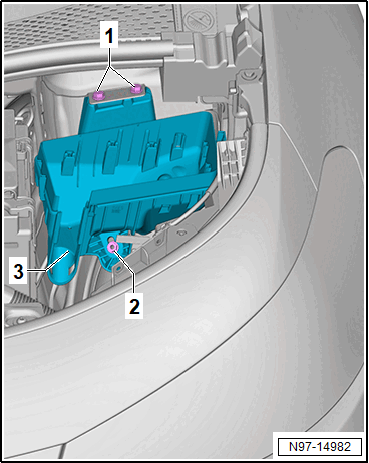

-- Remove the nut -2-.

GWWN97-14982Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-.

-- Remove the E-box -3-.
