Fiber-Optic Cable From Wiring Harness, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the connector for the fiber-optic cable from the control module.

-- Release the retainer -1-.

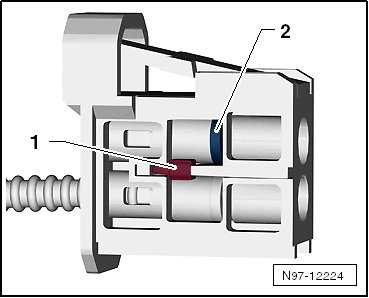

Fig 1: Identifying Removal Of Fiber-Optic Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging the secondary lock when releasing the catch.

- Use a new connector housing.

-- Release the secondary lock -2-.

CAUTION:

Risk of damaging the fiber-optic cable due to dust and contamination.

- Use the protective cap.

Conditions

Pay attention to the allocation of "IN" and "OUT" at the connector housing.

-- Remove the fiber-optic cable.
