Window Guide, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Uneven seat and position depending on the installation.

Wind noises are possible.

- When aligning and installing pay attention to the uneven seating and position.

-- Coat the window guide with soapy water to make it easier to install.

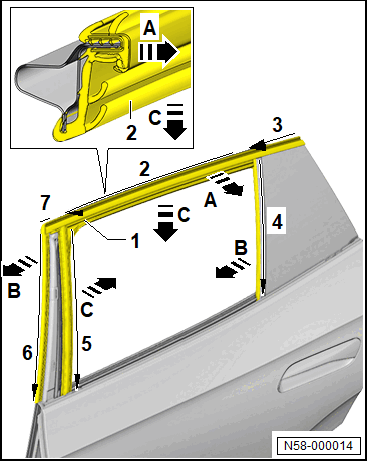

-- Insert the window guide -1- in areas -4- and -5- in the mounts on the door.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the window guide -1- in area -2- opposite the -direction of arrow C-.

-- Position the window guide -1- in area -7- opposite the -direction of arrow A- and align it with the rear door B-pillar trim.

-- Press on the window guide -1- in area -6- starting at the top.

-- Starting at the B-pillar, press on the window guide -1- evenly in areas -2- and -7-.

-- Press on the window guide -1- in area -3- on the fixed rear door window.

-- Secure the fixed rear door window. Refer to Fixed Rear Door Window, Removing and Installing .

-- Press on the window guide -1- in the areas -4- and -5-.
