Inner Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

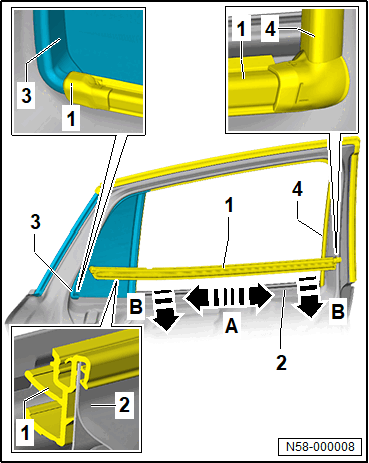

-- Center the inner window shaft strip -1- in the -direction of arrow A- between the front section of the window guide -4- and the rear section of the fixed rear door window -3-.
-- Press the inner window shaft strip -1- evenly by hand onto the door flange -2- in the -direction of arrow B-.
Further installation is performed in reverse order of the removal.
