Overview - Fixed Front Door Window

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

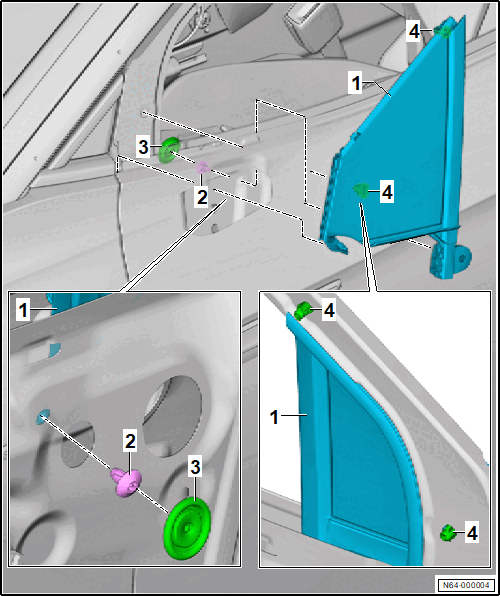

Fig 1: Fixed Front Door Window
GWWN64-000004Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Fixed Front Door Window
  2. Bolt
    • 8 Nm
  3. Cap
  4. Clip
    • Quantity: 2
