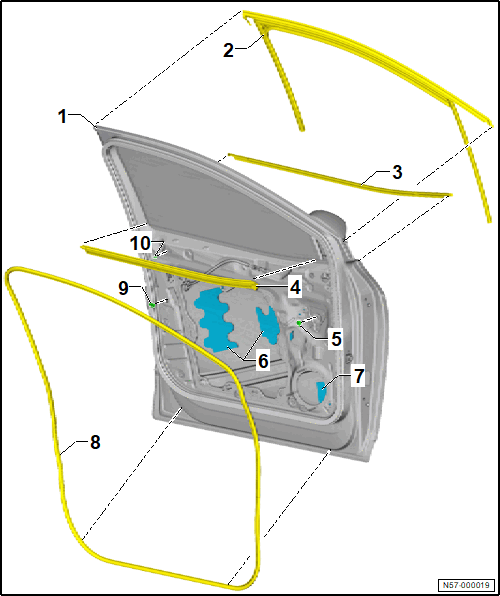

Overview - Door Components

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Door
- Refer to Door, Removing and Installing .
- Refer to Door, Adjusting .
Window Guide
- Refer to Window Guide, Removing and Installing .
Outer Window Shaft Strip
- Refer to Outer Window Shaft Strip, Removing and Installing .
Inner Window Shaft Strip
- Refer to Inner Window Shaft Strip, Removing and Installing .
Plug
Insulation
- Self-adhesive
Insulation
- Self-adhesive
Outer Door Seal
- Replace after removing
- Refer to Outer Door Seal, Removing and Installing .
Plug
Plug
