Lock Cylinder, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

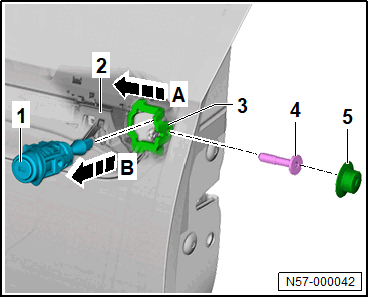

-- Remove the door handle cap. Refer to Door Handle Cap, Removing and Installing .
-- Pry out the cap -5-.
-- Remove the bolt -4- all the way.
-- Press the bolt -4- with locking mechanism -3- in the -direction of arrow A- until the lock cylinder -1- is released.
-- Remove the lock cylinder -1- in the -direction of the arrow B- out of the mounting bracket -2-.
