Inner Window Shaft Strip, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
CAUTION:
There is a risk of damaging the inner window shaft strip if removal is done incorrectly.
The inner window shaft strip can twist.
- Pry out the window shaft strip carefully.

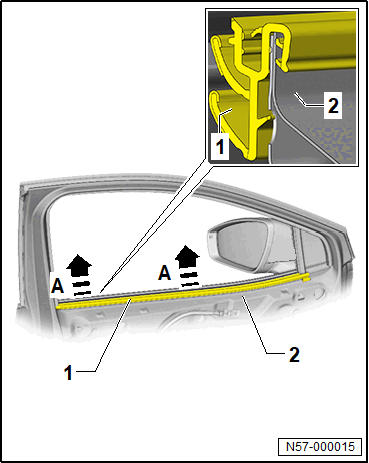

-- Pry out the inner window shaft strip -1- evenly from the door flange -2- in the -direction of arrow A- without twisting it.
