Left And Right Rear Door Control Module J926/J927, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Perform the "Control module, replacing" function with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

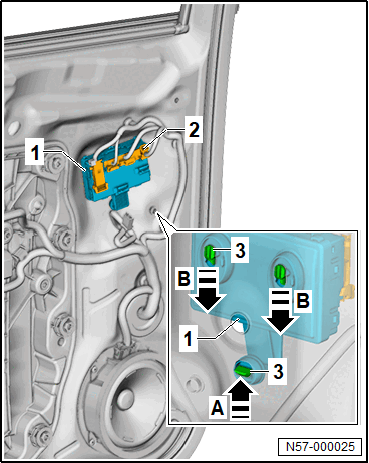

-- Disconnect the connectors -2-.
-- Release the hook -3- in the -direction of the arrow A-.
-- Push the door control module -1- in the -direction of the arrow B- and remove.
