Side Adjusting Buffer, Adjusting
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

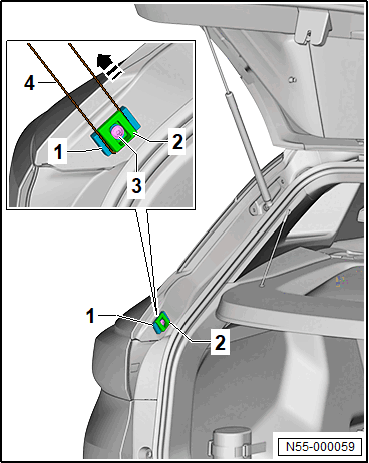

The procedure shown is for the left side of the vehicle as an example.
-- Loosen the bolt -3- only enough so that the adjusting buffer -2- can slide on the carrier plate -1-.
-- Use a commercially available cord -4- to free up the adjusting buffer -2-.
-- Close the rear lid.
-- Bring the adjusting buffer -2- with the cord -4- all the way to the rear lid.
-- Tighten the bolt -3-.
Tightening Specifications
- Refer to Overview - Rear Lid .
