Rear Lid Lock Unit VX25, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

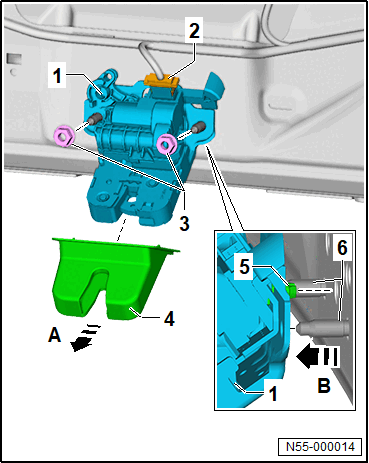

-- Remove the cover for the lock unit -4- in the -direction of arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Remove the nuts -3-.

-- Remove the lock unit -1- in the -direction of arrow B- from the pin -6-. At the same time the hook -5- loosens.
