Rear Lid Lock Unit VX25 With Closing Assist, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the closing assist release cable. Refer to Closing Assist Release Cable, Removing and Installing .

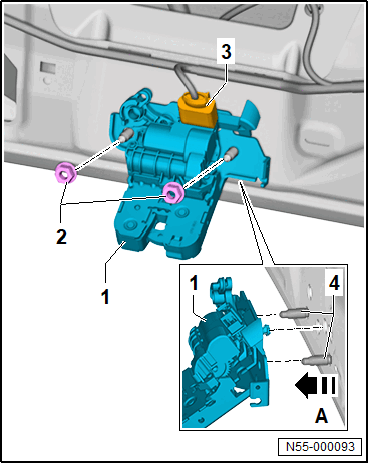

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -2-.

-- Remove the lock unit -1- in the -direction of arrow A- from the pin -4-.
