Rear Lid Closing Aid VX16, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To release the release cable -4- turn the mount -3- slightly in the -direction of the arrow- and hold.

-- Disengage the support bracket -5-.

-- Disengage the release cable -3-.

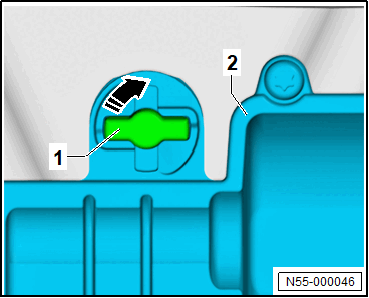

-- Release the clip -1- 90° in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Repeat the procedure for the remaining clips.

-- Remove the closing assist -2-.
