Power Rear Lid Opening Sensors G750/G760, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to Bumper Cover, Removing and Installing .

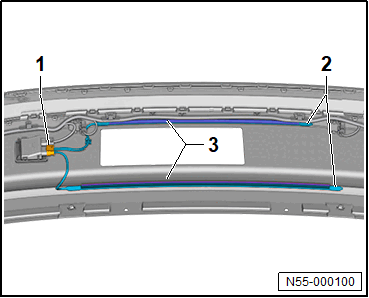

-- Disconnect the connector -1-.

GWWN55-000100Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Heat up the power rear lid opening sensor -2- in the area of the adhesive tape -3- using the Hot Air Blower: V.A.G 1416  . Refer to Installation Requirements for Components with Adhesive Tape .

-- Remove the power rear lid opening sensor -2-.
