Lower Adjusting Buffer, Adjusting

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The procedure shown is for the left side of the vehicle as an example.

-- Remove the striker. Refer to Striker, Removing and Installing .

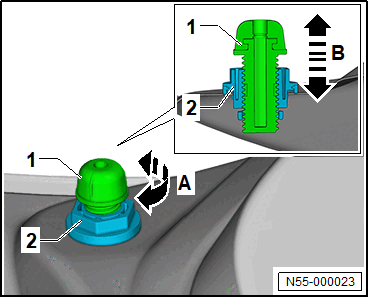

-- Turn the adjusting bolt -1- in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

At the same time, the height of the adjusting buffer -2- changes in the -direction of the arrow B-.

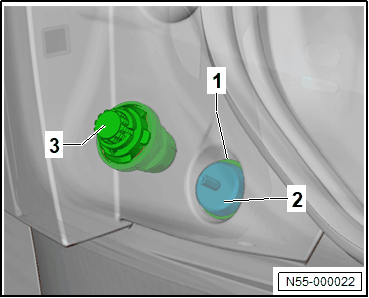

-- Close the rear lid, at the same time pay attention to the correct position of the stop -2- in the side panel -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The rear lid may not be positioned too far inward or outward when closed.

-- Check the adjustment.

-- Install the striker. Refer to Striker, Removing and Installing .
