Hinge, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

New hinge

-- Use a new seal.

Continuation for all vehicles

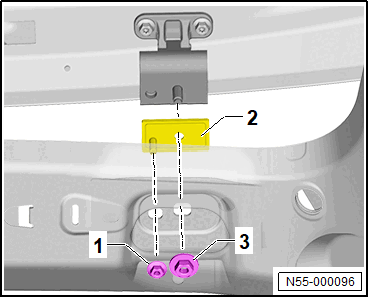

-- Tighten the nuts -1- and -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the nut -3-.

-- Tighten the nut -3- until the seal -2- is seated correctly.

-- Apply corrosion protection to the nuts and bolts.

Follow the instructions in the Paint repair information. Refer to CORROSION PROTECTION FOR BODY, ATTACHED AND WELDED PARTS .

-- Refer to Rear Lid, Adjusting .
