Ball Pin, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
Vehicles with ball pin to rear lid

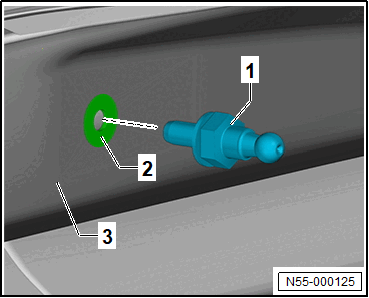

-- Grind down the contact surface of the ball pin -2- on the rear lid -3- before installing to bare metal.
Requirement
- Paint design on the ball pin and rear lid must be reproduced according to the instructions after installing. Refer to the Paint information.
Vehicles with ball pin to body
-- Grind down the contact surface of the ball pin -2- on the body -3- before installing to bare metal.
Requirement
- Paint design on the ball pin and body must be reproduced according to the instructions after installing. Refer to the Paint information.
Continuation for all vehicles
