Support Rod, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
There is a risk of damage to surrounding components if the hood is loose.
Paint damage possible.
- Support the hood.
-- Support the hood with the Hood Support: VAS 501 003 .

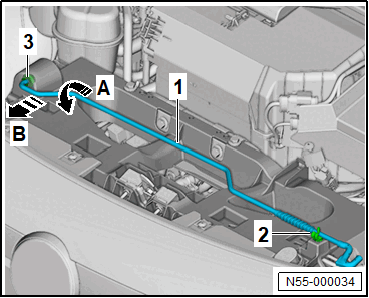

-- Remove the support rod -1- from the clip -2-.
-- Pivot the support rod -1- out of the mount on the lock carrier.
-- Remove the support rod -1- in the -direction of arrow B-.
