Release Cable, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

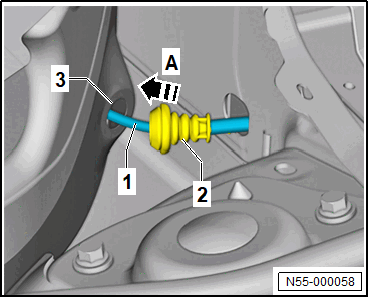

-- Guide the release cable -1- with the grommet -2- in the -direction of the arrow A- through the opening in the body -3- in the vehicle interior.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the grommet -2- in the body opening -3-.

-- Pay attention, that the grommet -2- is seated correctly.

CAUTION:

Malfunction of the hood latch due to incorrect positioning of the release cable in the release cable coupling.

If the release cable is installed in the incorrect position, the hood can no longer be opened.

- Pay attention that the release cable is seated correctly in the release cable coupling.

- Always perform a function test, before the hood is closed.

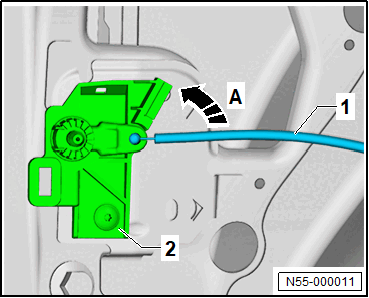

-- Engage the release cable -1- in the -direction of the arrow A- in the release cable coupling -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

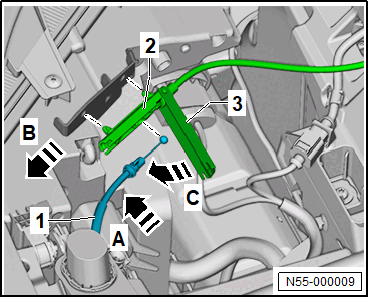

-- Using the cap -3- from the release cable coupling -2- secure the release cable -1- but do not close the cap -3-.

-- Pretension and hold the release cable -1- in the -direction of the arrow B-.

-- Close the cap -3- in the -direction of the arrow C-.

-- Release the release cable -1- in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

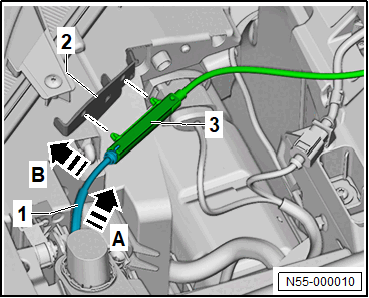

-- Secure the release cable coupling -3- in the -direction of the arrow B- on the support -2-.

-- Engage the release cable -1- in the -direction of the arrow A- from the mounting bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Perform a function test.

-- Close the hood.
