Charging Socket 1 Led Module L263, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the charge door unit. Refer to Charge Door Unit, Removing and Installing  .

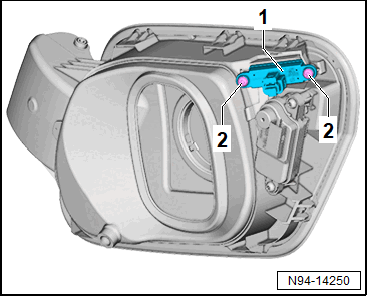

-- Remove the bolts -2-.

GWWN94-14250Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Charging Socket 1 LED Module -L263- -1-.
