Charge Door Unit, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

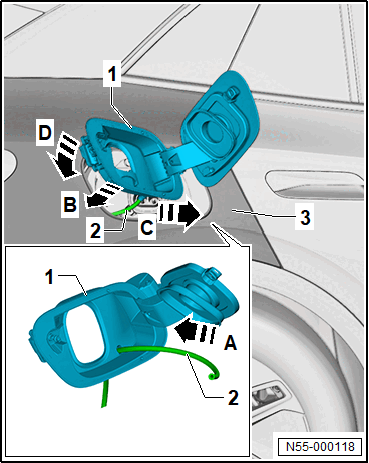

-- Insert the water drain hose -2- in the -direction of the arrow A- through the opening in the charging port door unit -1- and pull it through until it stops.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the water drain hose -2- in the -direction of the arrow B- in the side panel -3-.

CAUTION:

There is a risk of damage from pivoting the charging door unit inward.

Paint damage possible.

- Fold in the charging door unit.

-- Pivot the charge door unit -1- in the -direction of arrow C- in the side panel -3-. At the same time the fold down the charge door unit to that it does not contact the side panel -3-.

-- Connect the connectors.

-- Push the charge door unit -1- in the -direction of the arrow D- in the side panel until the catch engages.

-- Perform a function test with the charging door unit open.
