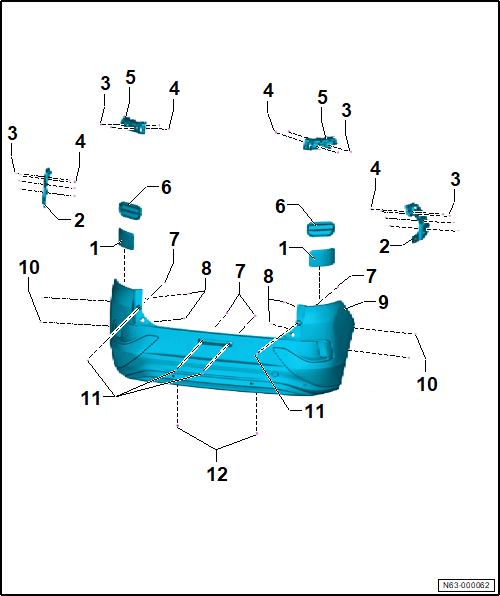

Overview - Bumper Cover
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Insulation
- Guide
- Bolt
- Quantity: 12
- 3 Nm
- Expanding Nut
- Quantity: 12
- Guide
- Passenger Compartment Forced Air Extraction
- Expanding Nut
- Quantity: 4
- Expanding Nut
- Quantity: 4
- Bumper Cover
- Refer to Bumper Cover, Removing and Installing .
- Refer to Bumper Cover, Servicing .
- Bolt
- Quantity: 4
- 2 Nm
- Bolt
- Quantity: 4
- 2 Nm
- Expanding Rivet
- Quantity: 2
