Bumper Cover Lower Section, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover trim. Refer to Bumper Cover Trim, Removing and Installing .

-- Free up the wires.

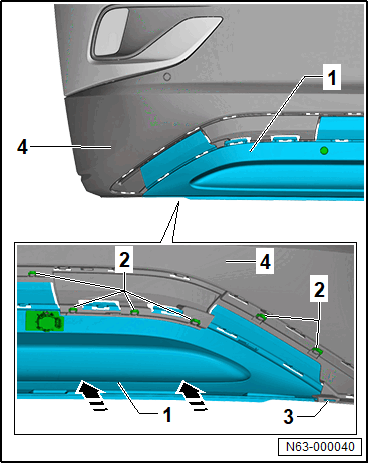

-- Loosen the retainers -2- across the entire width.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bumper cover lower section -1- with the alignment pin -3- in the -direction of the arrow- from the bumper cover -4-.

-- Remove the bumper cover upper section. Refer to Bumper Cover Upper Section, Removing and Installing .

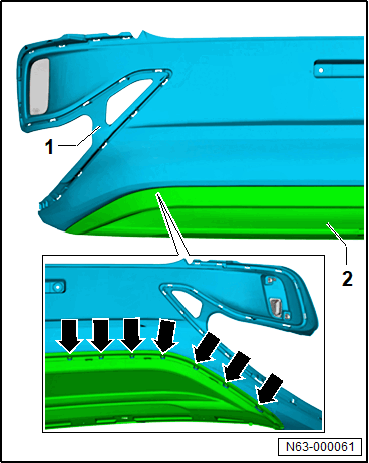

-- Loosen the retainers -arrows- across the entire width.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bumper cover lower section -1- from the lower area of the bumper cover -2-.
