Trim Molding, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the trim molding. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Loosen the catches -3-.

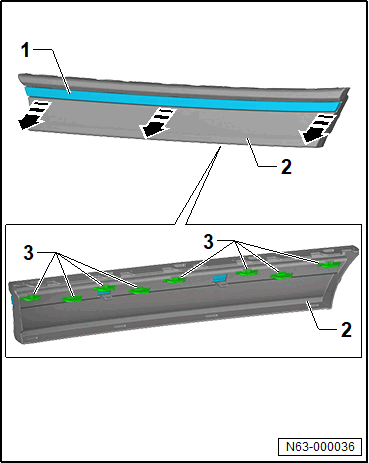

GWWN63-000036Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim molding -1- in the -direction of the arrow- from the decorative trim -2-.
