Side Marker Reflector, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Remove the adhesive residue and the adhesive surfaces. Refer to Installation Requirements for Components with Adhesive Tape .
-- Remove the protective film from the adhesive tape -3-.

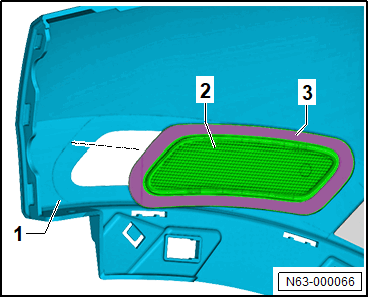

-- Insert the side marker reflector -2- into the bumper cover -1- and press on it firmly in the adhesive tape.
-- Press on the side marker reflector -2- with a force of 50 N.
Requirement
- The minimum curing time must be complied to. Refer to Installation Requirements for Components with Adhesive Tape .
