Cover For The Bumper Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover front spoiler. Refer to Bumper Cover Front Spoiler, Removing and Installing  .

-- Remove the bumper cover reinforcement. Refer to Bumper Cover Reinforcement, Removing and Installing  .

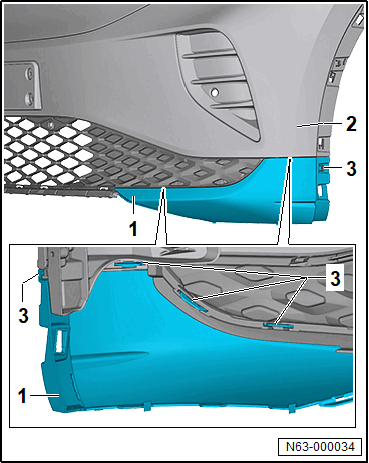

-- Loosen the catches -3-.

GWWN63-000034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover for the bumper cover -1- from the bumper cover -2-.
