Center Air Intake Grille, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover for the bumper cover. Refer to Cover for the Bumper Cover, Removing and Installing .

-- Disconnect the connectors.

-- Remove the wires.

Tip

The number and positions of the retainers depends on the model.

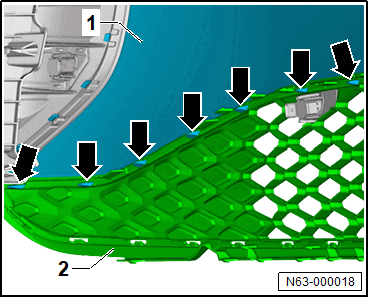

-- Loosen the retainers -arrows- on both sides of the vehicle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center air intake grille -1- from the bumper cover -2-.
