Bumper Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the front wheel arch trim in the area of the bumper cover. Refer to the appropriate service information .
-- Loosen the front wheel housing liner in the area of the bumper cover. Refer to Front Wheel Housing Liner, Removing and Installing .

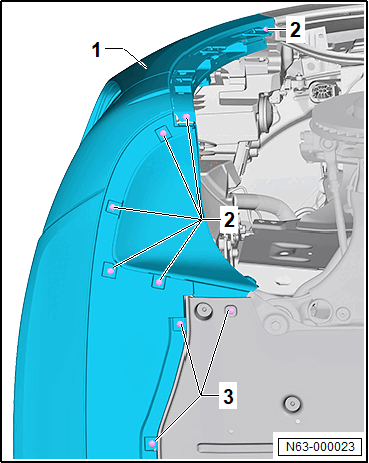

-- Remove the bolts -2- and -3- on both sides of the vehicle.

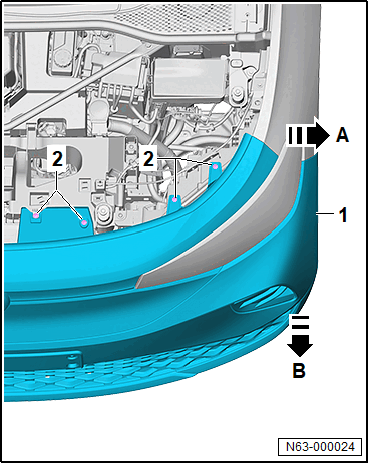

-- Remove the bolts -2- on both sides of the vehicle.
Requirement
- The help of a second person is necessary for the following procedure.
-- Unclip the bumper cover -1- in the -direction of the arrow A- and hold it.
-- Remove the bumper cover -1- in the -direction of the arrow B-.
-- Disconnect the connectors.
